RELIABLE TEST & MEASUREMENT
SOLUTIONS FOR UNIVERSITY MAINTENANCE
Keep your university running safely and efficiently with measurement solutions designed for campus maintenance teams.

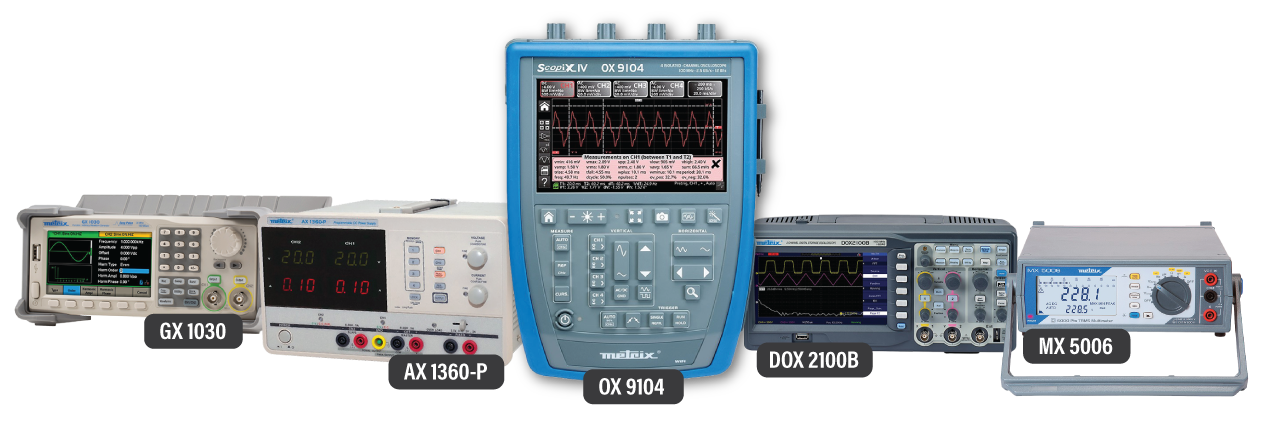

OUR BEST SELLERS:
THE GOLD STANDARD IN TEST & MEASUREMENT

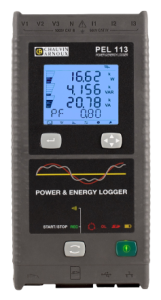

PEL 113
POWER & ENERGY LOGGER
- Perfect for commercial and industrial installations
- Identify business energy savings
- Find power quality problems like harmonics or poor power factor
- Wide range of current sensors available for AC and DC applications
- Set up email alarm notifications for any parameters you choose

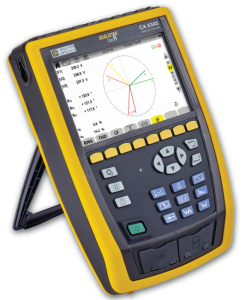

CA 8345
POWER QUALITY ANALYSER
- IEC 61000-4-30 Class A standard
- Built-in GPS to view time and date reference
- Gives you remote access with screen mirroring
- Records data on an accessible SD card for easy access
- Stay connected through Ethernet or Wi-Fi
MX 5006 Bench Top Multimeter
- Error-free current measurement up to 10 A thanks to the single A terminal
- TRMS AC+DC and up to 60,000 counts displayed with 100 kHz bandwidth
- Measurement stability with the VLowZ calibre which eliminates spurious voltages
- Measurement stability on variable speed drives with the 300 Hz PWM filter
- Recording and monitoring of the signed Min, Max and Peak values
- Compliance with IEC 61010 1000 V CAT III double insulation, optimised safety
GX 1030 Bench Top Function Generator
This multifunction, high-performance, communicating laboratory tester-generator offers a variety of stable, high-fidelity signals:
- Large 4.3-inch high-contrast TFT colour screen ( 960×540 mm)
- Frequency range from 0.001 mHz to 30 MHz for classic and arbitrary signals
- DDS technology on 2 outputs (coupling and duplication) – combination of functions
- Signals sampled at 150 MS/s with 14-bit resolution
- Analogue and digital modulation types: AM & FM, FSK & ASK, PSK and PWM
- Practical SWEEP and BURST functions
- Frequency meter from 100 mHz to 200 MHz
- EasyPulse technology for generating low-jitter pulses
- TrueArb technology to eliminate jitter and signal distortion
- Programmable via a USB or Ethernet link and storage on USB key
- PC software for creating arbitrary signals: SX-GENE and EasywaveX
AX 1360 Bench Top Power Supply
- 2 adjustable outputs (0-30 V) and 1 selectable fixed output (2.5 V / 3.3 V / 5 V)
- Bright 3-digit colour display of currents and voltages simultaneously
- Simpler use thanks to cordless series or parallel connection
- Faster work with 4 stored configurations available for recall on front panel
- High stability and low drift over time in all modes
- Protection against overvoltages, heating and short-circuits
- Ventilator control according to power output 3 USB communication

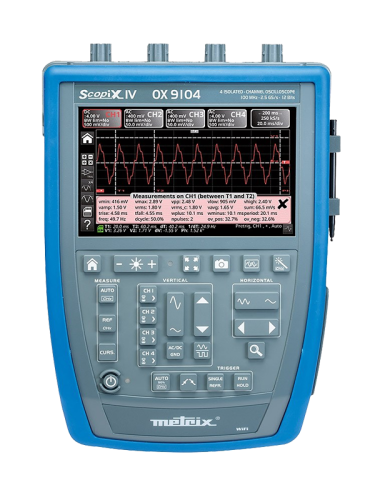

OX 9104 Portable Scope
- Oscilloscope, multimeter, bus analyser with reading of files and recorded directly on the oscilloscope
- Safety: channels genuinely isolated from one another and from another, and from the earth, 600 V CAT III and probix probe
- Ergonomics: modern, high-tech environment for oscilloscopes which are simple, compact, and practical
- Optimisation of all the tools: communication, storage and optimisation
- Designed for optimum user comfort

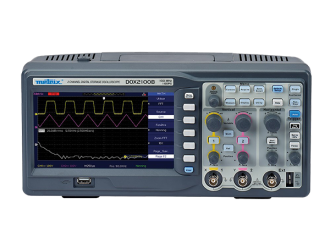

DOX 2100B Bench Top Scope
- Lightweight casing, stable non-slip feet, and a built-in handle for easy transport.
- Clear 7” colour display – 18 divisions in full-screen mode with customizable colours, graticule, brightness, and contrast for maximum readability.
- High-performance acquisition – 500 MS/s on 2 channels, 1 GS/s single channel, and up to 50 GS/s in repetitive mode for precise waveform capture.
- 32 kpoints standard acquisition memory, expandable with USB storage for long-duration testing.
- Versatile measurement tools. 32 automatic measurements, math functions (+, −, ×, ÷), real-time FFT, and simultaneous trace display.
- Compliance with IEC 61010-1 / 300 V CAT II
